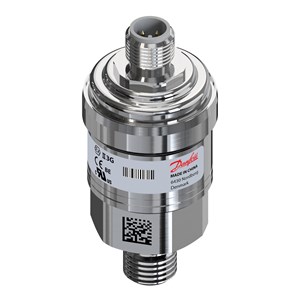

CẢM BIẾN ÁP SUẤT DANFOSS MBS3050 0-6BAR 4-20mA - C/N 060G1435

Gross weight

0.15 kg

Net weight

0.14 kg

EAN

5702423112326

+ supply

Pin 4

- common

Pin 1

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-13 °F

Comments

PIN 5: GROUND

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. comments

AU

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

5 pin

Electrical connection standard

EN 60947-5-2

Enclosure rating IP

IP67

Flush diaphragm

No

High Clipping Level

22.4

International Article Number

5702423112326

Intrinsically safe

No

Low Clipping Level

3.6

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

20 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-G

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [Max]

6 bar

Pressure range [bar] [Min]

0 bar

Pressure range [psi] [Max]

87.02 psi

Pressure range [psi] [Min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

20 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

Response time max. [ms]

4 ms

Specification key

MBS 3050-1831-E4FB04-4

Supply voltage [V] DC [Max]

32 V

Supply voltage [V] DC [Min]

9 V

Type

MBS 3050
