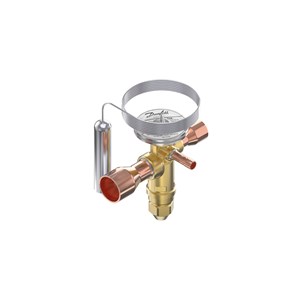

VAN TIẾT LƯU DANFOSS TGE30 R22/R407C - C/N 067N2038
Temperature range [°C]: -25 - 10, MOP Point [°C]: 15, Orifice capacities [kW]: 104.00, Orifice capacities [TR]: 30.00, Pressure equalization: Externally equalized
Gross weight |
1.09 kg |
Net weight |
1.01 kg |
EAN |
5702428138888 |
Approval |
C UL US LISTED |
Balanced port [Yes/No] |
Yes |
Body material |
Brass |
Bulb temperature max. [ºC] |
150 °C |
Bulb temperature max. [ºF] |
302 °F |
Capillary tube length [in] |
118 in |
Capillary tube length [mm] |
3000 mm |
Connection material |
Copper |
Direction |
Straightway |
Element temperature max. [°C] |
110 °C |
Element temperature max. [°F] |
230 °F |
Equalization connection type |
SOLDER, ODF |
Equalization size [in] |
1/4 IN |
Flow direction |
Bi-flow |
Flow direction indicator |
Embossed 1-way arrow |
Identical product |
067N2018 |
Inlet connection type |
SOLDER, ODF |
Inlet size [in] |
1 1/8 in |
Max. Working Pressure [bar] |
49 bar |
Max. Working Pressure [psig] |
711 psig |
MOP Point [psig] |
MOP 100 |
MOP Point [°C] |
15 °C |
MOP Point [°F] |
60 °F |
Orifice capacities [kW] |
104 kW |
Orifice capacities [TR] |
30 tons |
Orifice size |
30 |
Outlet connection type |
SOLDER, ODF |
Outlet size [in] |
1 3/8 in |
Packing format |
Industrial pack |
Parts included |
Bulb strap |
Pressure equalization |
Externally equalized |
Product accessories |
TXV accessories |
Product description |
Thermostatic Expans. Valve |
Product family name |
TGE |
Product group |
Expansion valves |
Product name |
Thermostatic expansion valve |
Quantity per packing format |
8 pc |
Rated cap. cond. Range N [IMP] |
tcond=100 °F |
Rated cap. cond. Range N [SI] |
tcond=38 °C |
REACH Candidate List substances >0.1% |
Lead (CAS no. 7439-92-1) |
Refrigerants |
R22/R407C |
Serviceable |
No |
Static Superheat (SS) [°C] |
4 °C |
Static Superheat (SS) [°F] |
7.2 °F |
Superheat setting |
Adjustable |
Temperature range [°C] [Max] |
10 °C |
Temperature range [°C] [Min] |
-25 °C |
Temperature range [°F] [Max] |
50 °F |
Temperature range [°F] [Min] |
-15 °F |
Type |
TGE |
UL approved refrigerants |
R22 |
Valve body temp. max. [°C] |
150 °C |
Valve body temp. max. [°F] |
302 °F |
