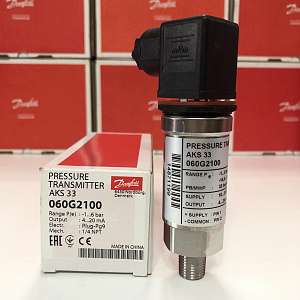

CẢM BIẾN ÁP SUẤT DANFOSS AKS33 1-6BAR 4-20mA - 060G2100

Mã sản phẩm: 060G2100
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN ÁP SUẤT DANFOSS AKS33 1-6BAR 4-20mA - 060G2100

Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: DIN-plug, Pressure connection type: NPT, Pressure connection size: 1/4-18, Specification key: AKS 33-D531-A1EC04-0



Gross weight

0.18 kg

Net weight

0.16 kg

EAN

5702422065876



+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ATEX
GOST POCC
cUR

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179
E227388
E31024

Compensated temp. range [°C] [Max]

40 °C

Compensated temp. range [°C] [Min]

-30 °C

Compensated temp. range [°F] [Max]

104 °F

Compensated temp. range [°F] [Min]

-22 °F

Electrical conn. Male/Female

Male and Female

Electrical connection

DIN-plug

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

High Clipping Level

22.4

International Article Number

5702422065876

Intrinsically safe

No

Low Clipping Level

3.6

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

33 bar

Overload pressure max. [psi]

479 psi

Packing format

Multi pack

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [Max]

6 bar

Pressure range [bar] [Min]

-1 bar

Pressure range [psi] [Max]

87 psi

Pressure range [psi] [Min]

-14.5 psi

Pressure reference

Sealed gauge

Product family name

AKS

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

Response time max. [ms]

4 ms

Specification key

AKS 33-D531-A1EC04-0

Supply voltage [V] DC [Max]

32 V

Supply voltage [V] DC [Min]

9 V

Type

AKS 33

Characteristic

Value
Type MBS 3050
Weight 0.178 Kg
- common PIN 2
+ supply PIN 1
Accuracy, max. +/- FS [%] 1,00 %
Accuracy, typical +/- FS [%] 0,5 %
Adj. zero point and span No
Ambient temperature [°C] -40 - 85 °C
Ambient temperature range [°F] -40 - 185 °F
Compensated temp. range [°C] 0 - 80 °C
Compensated temp. range [°F] 32 - 176 °F
EAN 5702423189427
Electrical connection type Pg 9, EN 175301-803-A, Male and Female
Enclosure rating IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] -40 - 85 °C
Medium temperature range [°F] -40 - 185 °F
Output signal type 4 - 20 mA
Overload pressure max. [bar] 600,0 bar
Packing format Multi pack
Pressure connection G 1/4
Pressure connection HEX [mm] 27,0
Pressure connection standard DIN 3852-E
Pressure connection type G - 1/4 Male
Pressure range [bar] 0,00 - 250,00 bar
Pressure unit reference Gauge (relative)
Pulse-snubber Yes
Quantity per packing format 14 PC
Response time max. [ms] 4 ms
Specification key MBS 3050-3411-1GB04
Supply voltage [V] d.c. 10,00 - 30,00 V
