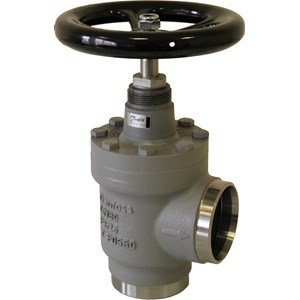

VAN CHẶN GÓC DANFOSS STC 100 - C/N 148B4617

Mã sản phẩm: 148B4617

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN CHẶN GÓC DANFOSS STC 100 - C/N 148B4617

Inlet connection type: Butt weld, Outlet connection type: Butt weld

Colour Paint	Gray
Connection standard	ASME B 36.10M SCHEDULE 40
Direction	Angleway
Equipment	Handwheel
Inlet connection size [in]	4 in
Inlet connection size [mm]	100 mm
Inlet connection type	Butt weld
Max. Working Pressure [bar]	25 bar
Max. Working Pressure [psig]	365 psig
Outlet connection size [in]	4 in
Outlet connection size [mm]	100 mm
Outlet connection type	Butt weld
Packing format	Single pack
Product description	Stop Valve
Product group	Shut-off and regulating valves
Product name	Shut-off valve
Quantity per packing format	1 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R404A R717 R507A
Temperature range [°C] [Max]	150 °C
Temperature range [°C] [Min]	-50 °C
Temperature range [°F] [Max]	302 °F
Temperature range [°F] [Min]	-58 °F
Type	STC 100
