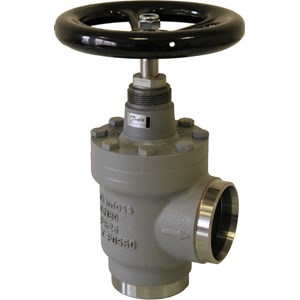

VAN CHẶN GÓC DANFOSS STC 125 - C/N 148B4619

Gross weight

39.25 kg

Net weight

30.91 kg

EAN

5702428884099

Colour Paint

Gray

Connection standard

ASME B 36.10M SCHEDULE 40

Direction

Angleway

Equipment

Handwheel

Inlet connection size [in]

5 in

Inlet connection size [mm]

125 mm

Inlet connection type

Butt weld

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

365 psig

Outlet connection size [in]

5 in

Outlet connection size [mm]

125 mm

Outlet connection type

Butt weld

Packing format

Single pack

Product description

Stop Valve

Product group

Shut-off and regulating valves

Product name

Shut-off valve

Quantity per packing format

1 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R404A
R717
R507A

Temperature range [°C] [Max]

150 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

302 °F

Temperature range [°F] [Min]

-58 °F

Type

STC 125
