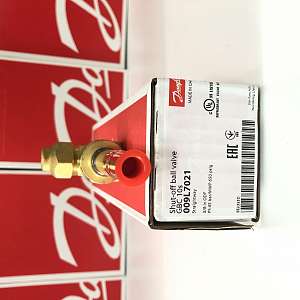

VAN CHẶN DANFOSS GBC 10S - C/N 009L7021

Mã sản phẩm: 009L7021
Thương hiệu: Danfoss
Giá thị trường: 762.500 đ
Tiết kiệm: 152.500 đ (20%)
Giá bán: 610.000 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN CHẶN DANFOSS GBC 10S - C/N 009L7021

Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Inlet size [in]: 3/8 in, Outlet size [in]: 3/8 in



Gross weight

0.18 kg

Net weight

0.13 kg

EAN

5702428515801



Access port

NO

Approval

C UL US LISTED
CE
EAC
UKCA

Body material

Brass

Connection material

Copper

Cv value [gal/min]

9.3 gal/min

Direction

Straightway

Equipment

Cap w. wire seal

Flow direction

Bi-flow

Flow direction indicator

Embossed 2-way arrow

Fluid Group

1;2

Identical product

009L7721

Inlet connection type

SOLDER, ODF

Inlet size [in]

3/8 in

Kv value [m³/h]

8.04 m³/h

Max. media temp. Oil free [°C]

80 °C

Max. test pressure [bar]

65 bar

Max. test pressure [psig]

940 psig

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

650 psig

Medium temp. range note

100°C-150°C for short term use

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515B
R516A

Outlet connection type

SOLDER, ODF

Outlet size [in]

3/8 in

Packing format

Multi pack

Panel mounting option

M3 × 0.5 (2 PC)

PED category

Art. 4, par. 3

Product accessories

BM/GBC valve accessories

Product description

Ball Valve

Product family name

GBC v2

Product group

Shut-off and regulating valves

Product name

Shut-off ball valve

Quantity per packing format

30 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22/R407C
R407A
R407F
R410A
R448A
R449A
R450A
R452A
R513A
R1234yf
R407H
R449B
R454C
R455A
R515B
R516A
R1234ze(E)
R290
R452B
R454B
R454A
R404A/R507A
R463A
R32

Serviceable

BM/GBC valve spare parts

Temperature range [°C] [Max]

150 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

300 °F

Temperature range [°F] [Min]

-40 °F

Type

GBC 10s

UL approved refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R516A
