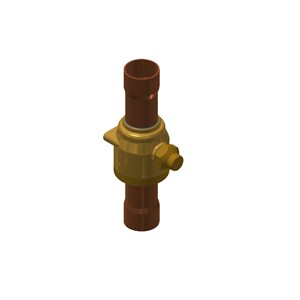

VAN CHẶN DANFOSS GBC 54S - C/N 009L7029

Gross weight

4.75 kg

Net weight

4.37 kg

EAN

5702428515726

Access port

NO

Approval

C UL US LISTED
CE
EAC
UKCA

Body material

Brass

Connection material

Copper

Cv value [gal/min]

277.57 gal/min

Direction

Straightway

Equipment

Cap w. wire seal

Flow direction

Bi-flow

Flow direction indicator

Embossed 2-way arrow

Fluid Group

2

Inlet connection type

SOLDER, ODF

Inlet size [in]

2 1/8 in

Inlet size [mm]

54 mm

Kv value [m³/h]

240.11 m³/h

Max. media temp. Oil free [°C]

80 °C

Max. test pressure [bar]

65 bar

Max. test pressure [psig]

940 psig

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

650 psig

Medium temp. range note

100°C-121°C for short term use

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515B

Outlet connection type

SOLDER, ODF

Outlet size [in]

2 1/8 in

Outlet size [mm]

54 mm

Packing format

Multi pack

Panel mounting option

M6 × 1.0 (2 PC)

PED category

I

Product accessories

BM/GBC valve accessories

Product description

Ball Valve

Product family name

GBC v2

Product group

Shut-off and regulating valves

Product name

Shut-off ball valve

Quantity per packing format

2 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22/R407C
R407A
R407F
R410A
R448A
R449A
R450A
R452A
R513A
R407H
R449B
R515B
R1234ze(E)
R404A/R507A
R463A
R1234yf
R32
R452B
R454A
R454B
R454C
R455A
R516A

Serviceable

BM/GBC valve spare parts

Temperature range [°C] [Max]

121 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

250 °F

Temperature range [°F] [Min]

-40 °F

Type

GBC 54s

UL approved refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
