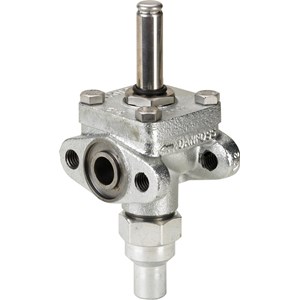

VAN ĐIỆN TỪ DANFOSS EVRAT 15 - C/N 032F6216
Function: NC, Inlet connection type: FLANGE, Outlet connection type: FLANGE, Manual operation option: Yes, Cv value [gal/min]: 3.120, Kv value [m³/h]: 2.700
Gross weight |
1.75 kg |
Net weight |
1.52 kg |
EAN |
5702422178422 |
Actuator system [mm] |
13.5 mm |
Ambient temperature |
-40 - 80 °C |
Ambient temperature range [°F] [Max] |
175 °F |
Ambient temperature range [°F] [Min] |
-40 °F |
Approval |
C UL US LISTED |
Body material |
Cast iron |
Coil |
No |
Cv value [gal/min] |
3.12 gal/min |
Direction |
Straightway |
Flow direction indicator |
Embossed 1-way arrow |
Function |
NC |
Inlet connection type |
FLANGE |
Kv value [m³/h] |
2.7 m³/h |
Manual operation option |
Yes |
Max. Working Pressure [bar] |
42 bar |
Max. Working Pressure [psig] |
610 psig |
MaxOPD[bar] 10W AC |
14 bar |
MaxOPD[bar] 12W AC |
21 bar |
MaxOPD[bar] 20W DC |
16 bar |
MaxOPD[psi] 14W AC |
350 psi |
Medium temp. range note |
Defrost max 130°C/265°F |
Medium temperature range [°C] [Max] |
105 °C |
Medium temperature range [°C] [Min] |
-40 °C |
Medium temperature range [°F] [Max] |
221 °F |
Medium temperature range [°F] [Min] |
-40 °F |
MinODP [bar] |
0 bar |
MinODP [psi] |
0 psi |
Orifice size [mm] |
15 mm |
Outlet connection type |
FLANGE |
Packing format |
Single pack |
Parts Program name |
EVRA / EVRAT |
Product accessories |
Flanges |
Product family name |
EVRAT |
Product group |
Solenoid valves |
Product name |
Solenoid valve |
Quantity per packing format |
1 pc |
Refrigerants |
R134a |
Serviceable |
Solenoid valve spare parts |
Type |
EVRAT 15 |
Type designation |
Solenoid valve |
Valve operation |
SERVO-DIAPHRAGM |
