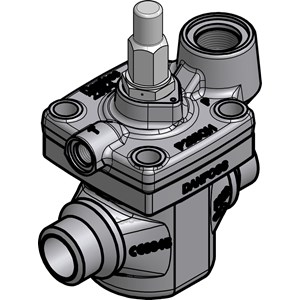

VAN ĐIỀU ÁP DANFOSS ICS 1 25-20 - C/N 027H2051

Mã sản phẩm: 027H2051
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN ĐIỀU ÁP DANFOSS ICS 1 25-20 - C/N  027H2051

Inlet connection type: Butt weld, Connection standard: ASME B 36.10M SCHEDULE 80, Inlet connection size [mm]: 25.0, Kv value [m³/h]: 8.000, Connection material: Stee

Gross weight

3.74 kg

Net weight

3.45 kg

EAN

5702428236768



Approval

EAC
LLC CDC EURO-TYSK
UL

Body material

Steel

Brand

ICV Flexline

Category

Art. 3, par. 3

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Cv value [gal/min]

9.3 gal/min

Direction

Straightway

Equipment

Ext pilot pressure connection

Weld nipple (P2 Port)

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Further information

Coils not included

Inlet connection size [in]

1 in

Inlet connection size [mm]

25 mm

Inlet connection type

Butt weld

Kv value [m³/h]

8 m³/h

Manual operation option

Manual open spindle

Max. Working Pressure [bar]

65 bar

Max. Working Pressure [psig]

943 psig

Opening configuration

Closed (delta p=0 bar)
Full open (delta p≥0.2 bar)

Outlet connection size [in]

1 in

Outlet connection size [mm]

25 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

ICS

PED category

Art. 3, par. 3

Pressure gauge connection

Int. thread with blind plug

Product accessories

ICM / ICS / ICLX accessories

Product description

Servo operated valve

Product family name

ICS
ICS + CVC
ICS + CVP
ICS + CVPP
ICS + EVM
ICS ext

Product group

Press. and temp. regul. valves

Product name

Pilot operated servo valve

Quantity per packing format

1 pc

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R1234ze(E)
R507A
R1233zd(E)
R1234yf
R125
R152a
R227ea
R236fa
R245fa
R290
R32
R407H
R413A
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R512A
R513A
R513B
R515A
R515B
R516A
R170
R452C
R600
R600a

Serviceable

ICM / ICS / ICLX spare parts

Surface coating

Zn (TLP)

Temperature range [°C] [Max]

120 °C

Temperature range [°C] [Min]

-60 °C

Temperature range [°F] [Max]

248 °F

Temperature range [°F] [Min]

-76 °F

Top cover

1 function module

Type

ICS1 25-20

UL approval file name

REFRIGERANT VALVE 53R0

Valve operation

Pilot operated

Valve version

Standard version
