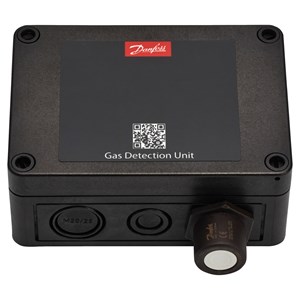

THIẾT BỊ KIỂM TRA KHÍ GAS DANFOSS - GAS DETECTION UNIT, BASIC - C/N 148H6014

Gross weight

0.34 kg

Net weight

0.27 kg

EAN

5714279919882

Alarmlimits high [ppm] sensor1

900 ppm

Alarmlimits low [ppm] sensor1

500 ppm

Equipment

Frequency [Hz]

50/60 Hz

Gas detecting sensor version

Basic

Packing format

Single pack

Parts included

Cable gland
Complete unit
Mounting kit

Power consumption [A]

0.25 A

Product group

Sensors

Product name

Gas detection unit

Quantity per packing format

1 pc

Refrig. range [ppm] sensor1 [Max]

1000 ppm

Refrig. range [ppm] sensor1 [Min]

0 ppm

Refrigerants

R717

Relative humidity (RH) [%] [Max]

90 %

Relative humidity (RH) [%] [Min]

15 %

Response delay [s]

0 "

Sensor 1 type

Electrochemical

Supply voltage [V] AC [Max]

29 V

Supply voltage [V] AC [Min]

19 V

Supply voltage [V] DC [Max]

29 V

Supply voltage [V] DC [Min]

19 V

Temperature range [°C] [Max]

50 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

122 °F

Temperature range [°F] [Min]

-40 °F

Type

Basic
