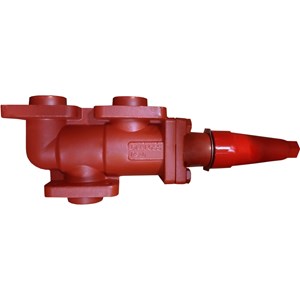

VAN DANFOSS DSV 2 FD20/ND20 - C/N 148F3006

Gross weight

9.74 kg

Net weight

5.9 kg

EAN

5702428242530

Approval

CE
EAC
LLC CDC TYSK
UKCA

Category

Art. 3, par. 3

Colour Paint

Reddish brown

Connection standard

EN 10220
ISO 228-1

Cv value [gal/min]

34.8 gal/min

Direction

Threeway

Equipment

Cap

Fluid Group

1

Inlet connection size [in]

3/4 in

Inlet connection size [mm]

20 mm

Inlet connection type

Weld flange

Kv value [m³/h]

30 m³/h

Max. Working Pressure [bar]

40 bar

Max. Working Pressure [psig]

580 psig

Outlet connection comments

Thread flange

Outlet connection size [in]

3/4

Outlet connection type

G

Outlet Internal/External

Internal

Packing format

Single pack

Parts included

Incl.Kit

PED category

Art. 3, par. 3

Product description

Double stop valve

Product group

Safety relief valves

Product name

Change-over valve

Quantity per packing format

1 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R170
R22
R290
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R600
R600a
R717
R744
R507A
R1233zd(E)
R1234yf
R1234ze(E)
R125
R152a
R227ea
R236fa
R245fa
R32
R407H
R413A
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R512A
R513A
R513B
R515A
R515B
R516A

Safety valve combination

2 x SFA 15

Safety valve conn. size [in]

3/4 in

Safety valve conn. size [mm]

20 mm

Safety valve connection std

EN 10220

Safety valve connection type

Weld nipples

Temperature range [°C] [Max]

100 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

212 °F

Temperature range [°F] [Min]

-58 °F

Type

DSV 2
