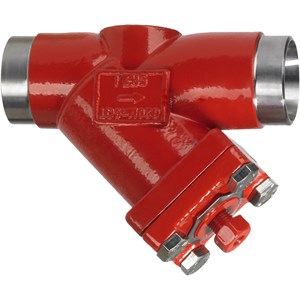

LỌC DANFOSS FIA 40 - C/N 148B5644

Gross weight

3.31 kg

Net weight

2.8 kg

EAN

5702428476331

Approval

CE
UKCA

Brand

SVL Flexline

Category

II

Colour Paint

Reddish brown

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Cv value [gal/min] 100 plain

85.86 gal/min

Cv value [gal/min] 100 pleated

112.27 gal/min

Cv value [gal/min] 150 plain

84.54 gal/min

Cv value [gal/min] 38 plain

94.66 gal/min

Cv value [gal/min] 72 plain

88.94 gal/min

Cv value [gal/min] 72 pleated

116.24 gal/min

Direction

Straightway

Equipment

Cover

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1;2

Inlet connection size [in]

1 1/2 in

Inlet connection size [mm]

40 mm

Inlet connection type

Butt weld

Kv value [m3/h] µ100 plain

19.2 m³/h

Kv value [m3/h] µ150 plain

19.5 m³/h

Kv value [m3/h] µ250 plain

20.2 m³/h

Kv value [m3/h] µ250 pleated

26.4 m³/h

Kv value [m3/h] µ500 plain

21.5 m³/h

Kv value [m³/h] µ150 pleated

25.5 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Outlet connection size [in]

1 1/2 in

Outlet connection size [mm]

40 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

FIA

PED category

II

Product accessories

SVL Flexline accessories

Product description

Filter housing

Product family name

FIA straight plain
FIA straight pleated

Product group

Strainers

Product name

Strainer housing

Quantity per packing format

1 pc

Refrigerants

R113
R114
R1233zd(E)
R1234yf
R1234ze(E)
R125
R1270
R1336mzz(Z)
R134a
R152a
R170
R22
R227ea
R23
R236fa
R290
R32
R401A
R402A
R402B
R404A
R407A
R407B
R407C
R407F
R407H
R408A
R409A
R410A
R417A
R421A
R422A
R422B
R422D
R427A
R438A
R444B
R447A
R448A
R449A
R449B
R450A
R452A
R454B
R455A
R502
R503
R513A
R600
R600a
R717
R744
RE170
R507A
R1150
R245fa
R413A
R442A
R447B
R452B
R454A
R454C
R463A
R512A
R513B
R515A
R515B
R516A

Serviceable

SVL Flexline spare parts

Temperature range [°C] [Max]

150 °C

Temperature range [°C] [Min]

-60 °C

Temperature range [°F] [Max]

302 °F

Temperature range [°F] [Min]

-76 °F

Type

FIA 40

Valve version

Standard version
