VAN CHẶN MỘT CHIỀU DANFOSS SCA-X 80, SVL PS52 - C/N 148B5903

Mã sản phẩm: 148B5903

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

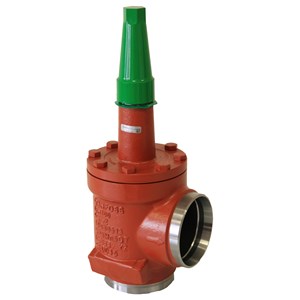

VAN CHẶN MỘT CHIỀU DANFOSS SCA-X 80, SVL PS52 - C/N 148B5903

Connection material: Steel, Inlet connection type: Butt weld

Approval	CE LLC CDC EURO-TYSK UKCA
Brand	SVL Flexline
Category	II
Colour Paint	Reddish brown
Connection material	Steel
Connection standard	ASME B 36.10M SCHEDULE 40
Cv value [gal/min]	119.48 gal/min
Direction	Angleway
Equipment	Cap
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1;2
Inlet connection size [in]	3 in
Inlet connection size [mm]	80 mm
Inlet connection type	Butt weld
Kv value [m³/h]	103 m³/h
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
MinODP [bar]	0.04 bar
MinODP [psi]	0.62 psi
Outlet connection size [in]	3 in
Outlet connection size [mm]	80 mm
Outlet connection type	Butt weld
Packing format	Single pack
Parts Program name	SCA-X
PED category	II
Product accessories	SVL Flexline accessories
Product description	Stop Check Valve
Product family name	SCA
Product group	Check valves
Product name	Check and stop valve
Quantity per packing format	1 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1233zd(E) R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R170 R452C
Serviceable	SVL Flexline spare parts
Temperature range [°C] [Max]	150 °C
Temperature range [°C] [Min]	-60 °C
Temperature range [°F] [Max]	302 °F
Temperature range [°F] [Min]	-76 °F
Type	SCA-X 80
Valve version	Standard version
