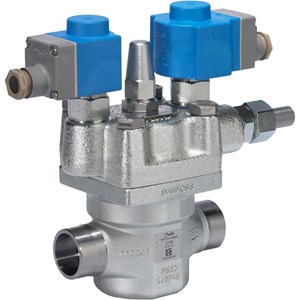

VAN ĐIỆN TỪ DANFOSS ICLX 32 ANSI - C/N 027H3041

Gross weight

8.01 kg

Net weight

6.95 kg

EAN

5702428483032

Actuator system

2 EVM pilot sol valve module

Approval

EAC
LLC CDC TYSK
TÜV
UL

Body material

Steel

Brand

ICV Flexline

Category

II

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Cv value [gal/min]

25.52 gal/min

Description

2-step solenoid valve

Direction

Straightway

Equipment

Ext pilot pressure connection

Nipple (P2 port)

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Further information

Coils not included

Inlet connection size [in]

1 1/4 in

Inlet connection size [mm]

32 mm

Inlet connection type

Butt weld

Kv value [m³/h]

22 m³/h

Manual operation option

Manual open spindle

Max. Working Pressure [bar]

65 bar

Max. Working Pressure [psig]

943 psig

Opening configuration

1-step (optional setting)
2-step (default)

Outlet connection size [in]

1 1/4 in

Outlet connection size [mm]

32 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

ICLX

PED category

II

Product accessories

ICM / ICS / ICLX accessories

Product description

Solenoid Valve

Product family name

ICLX

Product group

Solenoid valves

Product name

2-step solenoid valve

Quantity per packing format

1 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
R1233zd(E)
R1234yf
R1234ze(E)
R125
R152a
R227ea
R236fa
R245fa
R290
R32
R407H
R413A
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R512A
R513A
R513B
R515A
R515B
R516A
R170
R452C
R600
R600a

Serviceable

ICM / ICS / ICLX spare parts

Step 1 opening degree (~) [%]

10 %

Step 2 initialization

Delta p < 1.25 bar (18 psig)

Surface coating

Zn (TLP)

Temperature range [°C] [Max]

120 °C

Temperature range [°C] [Min]

-60 °C

Temperature range [°F] [Max]

248 °F

Temperature range [°F] [Min]

-76 °F

Type

ICLX 32

UL approval file name

REFRIGERANT VALVE 53R0

Valve operation

Direct operated

Valve version

Standard version
