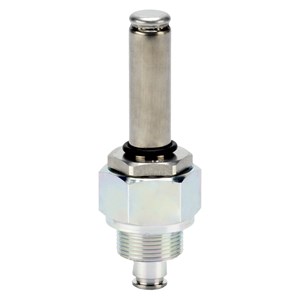

VAN DANFOSS PILOT VALVE EVM NC - C/N 027B1120

Kv value [m³/h]: 0.280, Max. Working Pressure [bar]: 65.0

PRODUCT DETAILS

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [Max]	176 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	EAC LLC CDC TYSK
Body material	Steel
Coil	No
Cv value [gal/min]	0.324 gal/min
Direction	None
Function	NC
Inlet connection type	Thread
Kv value [m³/h]	0.28 m³/h
Manual operation option	No
Max. Working Pressure [bar]	65 bar
Max. Working Pressure [psig]	940 psig
MaxOPD[bar] 10W AC	21 bar
MaxOPD[bar] 20W AC	40 bar
MaxOPD[bar] 20W DC	14 bar
MaxOPD[psi] 10W AC	305 psi
MaxOPD[psi] 20W AC	580 psi
MaxOPD[psi] 20W DC	203 psi
Medium temperature range [°C] [Max]	120 °C
Medium temperature range [°C] [Min]	-60 °C
Medium temperature range [°F] [Max]	248 °F
Medium temperature range [°F] [Min]	-76 °F
Orifice size [mm]	3.3 mm
Packing format	Multi pack
Parts Program name	CVH ICS
Product accessories	Pilot valve accessories
Product family name	ICS + EVM
Product group	Press. and temp. regul. valves
Product name	Pilot valve
Quantity per packing format	20 pc
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1233zd(E) R1234yf R1234ze(E) R125 R152a R170 R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R600 R600a
Serviceable	No
Type	EVM NC
Type designation	Solenoid valve
Valve operation	SERVO-PISTON
