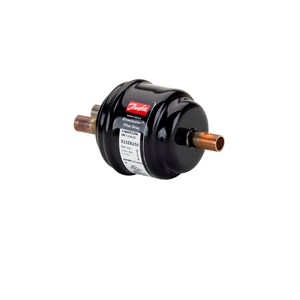

PHIN LỌC DANFOSS DML 03 - C/N 023Z504891

Gross weight

0.18 kg

Net weight

0.17 kg

EAN

5702428650137

Acid capacity [g]

0.2 g

Acid capacity [oz]

0.007 oz

Activated alum/Molec sieve [%]

0% / 100%

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

Category

Art. 3, par. 3

Connection material

Copper

Core

Solid core

Core Size code

03 cu.in.

Drying Cap[Drops of Water]24°C

R134a: 95
R290: --
R32: 80
R404A: 98
R407C: 92
R410A: 86
R507: 103

Drying Cap[Drops of Water]52°C

R134a: 87
R290: --
R32: 73
R404A: 93
R407C: 85
R410A: 76
R507: 93

Flow capacity [kW]

R134a: 5.8
R290: 7.0
R32: 8.8
R404A: 4.1
R407C: 5.9
R410A: 6.0
R507: 4.0

Flow capacity [TR]

R134a: 1.6
R290: 2.0
R32: 2.5
R404A: 1.2
R407C: 1.7
R410A: 1.7
R507: 1.1

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

Inlet 1 connection size [in]

1/4 in

Inlet connection type

SOLDER, ODF

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar
tliq= 30°C
tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi
tliq= 86°F
tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Net volume [foz US]

1.72 oz

Net volume [l]

0.051 L

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515A

Outlet 1 connection size [in]

1/4 in

Outlet connection type

SOLDER, ODF

Packing format

Multi pack

PED category

Art. 3, par. 3

Product description

Liquid line filter drier

Product group

Filter driers

Product name

Hermetic filter drier

Quantity per packing format

32 pc

Refrigerant oil compatibility

Oilfree applications
R1234ze(E)
R134a
R513A
R515A

Refrigerants

R1234yf
R125
R134a
R22/R407C
R23
R290
R32
R404A
R407A
R407F
R410A
R422B
R422D
R438A
R444B
R448A
R449A
R449B
R450A
R452A
R452B
R454B
R455A
R507A
R513A
R600
R1234ze(E)
R1233zd(E)
R407H
R454A
R463A
R515B
R516A
R454C

Serviceable

No

Shell volume [foz US]

2.44 oz

Shell volume [l]

0.07 L

Solid core surface [cm2]

59 cm²

Solid core surface [in2]

9.1 in²

Solid core volume [cm3]

21 cm³

Solid core volume [in3]

1.3 in³

Specification key

DML 032S

Temperature range [°C] [Max]

70 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

160 °F

Temperature range [°F] [Min]

-40 °F

Type

DML

Type designation

DML 032S

UL approval file name

SA6398

UL approved refrigerants

R125
R134a
R22
R23
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
