VAN MỘT CHIỀU DANFOSS NRVA 50 - C/N 020-2005

Mã sản phẩm: 020-2005

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

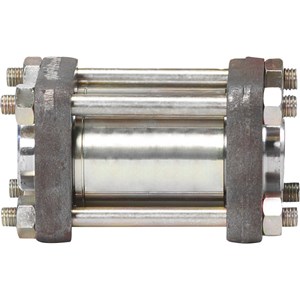

VAN MỘT CHIỀU DANFOSS NRVA 50 - C/N 020-2005

Connection standard: EN 10220, Connection type: Butt weld, Connection size [mm]: 50, Max. Working Pressure [bar]: 40.0

Approval	CE UKCA
Category	II
Connection size [in]	2 in
Connection size [mm]	50 mm
Connection standard	EN 10220
Connection type	Butt weld
Cv value [gal/min]	51 gal/min
Fluid Group	1
Kv value [m³/h]	44 m³/h
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Packing format	Multi pack
PED category	II
Product description	Check Valve
Product family name	NRVA
Product group	Check valves
Product name	Check valve
Quantity per packing format	4 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A R1233zd(E) R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A
Temperature range [°C] [Max]	140 °C
Temperature range [°C] [Min]	-50 °C
Temperature range [°F] [Max]	284 °F
Temperature range [°F] [Min]	-58 °F
Type	NRVA 50
