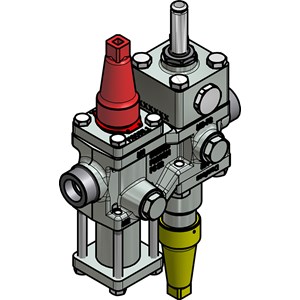

VAN TRẠM DANFOSS ICF 15-4-10HRA - C/N 027L4552

Gross weight

7.65 kg

Net weight

7 kg

EAN

5702428924481

Approval

EAC
UL

Body material

Steel

Category

Art. 3, par. 3

Connection material

Steel

Connection size [in]

1/2"

Connection size [mm]

15 mm

Connection standard

EN 10220

Connection type

Butt weld

Direction

Straightway

Equipment

Cap

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

450 psig

Module 1

Stop valve

Module 1 type

ICFS 15

Module 2

Filter

Module 2 type

ICFF 15

Module 3

Solenoid valve

Module 3 type

ICFE20H

Module 4

Manual regulating valve

Module 4 type

ICFR20A

Packing format

Single pack

PED category

Art. 3, par. 3

Product accessories

ICF accessories

Product description

Control Solution

Product group

Multifunction valves

Product name

Valve station

Quantity per packing format

1 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
R1233zd(E)
R1234yf
R1234ze(E)
R125
R227ea
R236fa
R245fa
R32
R407H
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R513A
R513B
R515A
R515B
R516A

Serviceable

ICF spare parts

Side port connection size [in]

3/8 in

Side port connection type

G

Side port placement

P1-P2

Side port quantity [pc]

2 pc

Surface coating

Zn (TLP)

Temperature range [°C] [Max]

120 °C

Temperature range [°C] [Min]

-60 °C

Temperature range [°F] [Max]

248 °F

Temperature range [°F] [Min]

-76 °F

Type

ICF 15-4-10HRA

Type code ICF

ICF-15-4-15DSYFYEHRAXXXX2AXX

UL approval file name

REFRIGERANT VALVE 53R0
