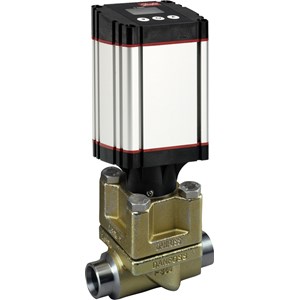

VAN ĐIỀU ÁP DANFOSS ICM 20-B 3/4 ẤN (20A) - C/N 027H1036

Mã sản phẩm: 027H1036
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN ĐIỀU ÁP DANFOSS ICM 20-B 3/4 ẤN (20A) - C/N 027H1036

Outlet connection size [mm]: 20.0, Inlet connection size [mm]: 20.0, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Kv value [m³/h]: 2.400



Gross weight

2.01 kg

Net weight

1.92 kg

EAN

5702428237314



Actuator system

ICAD motor, magnet coupling

Approval

EAC
LLC CDC EURO-TYSK
UL

Body material

Steel

Brand

ICV Flexline

Category

Art. 3, par. 3

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Cv value [gal/min]

2.8 gal/min

Direction

Straightway

Equipment

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Inlet connection size [in]

3/4 in

Inlet connection size [mm]

20 mm

Inlet connection type

Butt weld

Kv value [m³/h]

2.4 m³/h

Lubricants compatibility

Oilfree applications

Manual operation option

Via ICAD setting
Via Multifunction tool

MaxOPD [bar]

52 bar

MaxOPD [psig]

701.6129 psig

Oil free refrigerants

R1234ze(E)
R134a

Open/close time [s]

3 "

Outlet connection size [in]

3/4 in

Outlet connection size [mm]

20 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

ICM

PED category

Art. 3, par. 3

Product accessories

ICAD accessories
ICM / ICS / ICLX accessories

Product description

Motor operated valve

Product family name

ICM

Product group

Press. and temp. regul. valves

Product name

Motor operated valve

Quantity per packing format

1 pc

Refrigerant oil compatibility

Oilfree applications
R1234ze(E)
R134a

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R1234ze(E)
R507A
R1233zd(E)
R1234yf
R125
R227ea
R236fa
R245fa
R32
R407H
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R513A
R513B
R515A
R515B
R516A

Serviceable

ICM / ICS / ICLX spare parts

Surface coating

Zn (TLP)

Temperature range [°C] [Max]

120 °C

Temperature range [°C] [Min]

-60 °C

Temperature range [°F] [Max]

248 °F

Temperature range [°F] [Min]

-76 °F

Top cover

Actuator

Type

ICM 20-B

UL approval file name

REFRIGERANT VALVE 53R0

Valve operation

Motor operated

Valve version

Standard version
