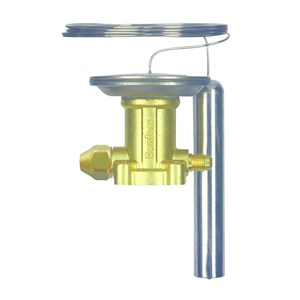

VAN TIẾT LƯU DANFOSS TE 5, R23 - C/N 067B3394

Mã sản phẩm: 067B3394

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN TIẾT LƯU DANFOSS TE 5, R23 - C/N 067B3394

Temperature range [°C]: -90 - -55, MOP Point [°C]: -50, Pressure equalization: Externally equalized

Approval	EAC LLC CDC TYSK
Body material	Brass
Capillary tube length [in]	118 in
Capillary tube length [mm]	3000 mm
Equalization connection type	SOLDER, ODF
Equalization size [mm]	6 mm
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	400 psig
MOP Point [psig]	MOP 55
MOP Point [°C]	-50 °C
MOP Point [°F]	-58 °F
Packing format	Multi pack
Parts included	Bulb strap Gasket O-ring
Parts Program name	TE 5
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Product description	Thermostatic Expans. Valve
Product family name	TE 5 - 55
Product group	Expansion valves
Product name	Element for expansion valve
Quantity per packing format	12 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R23
Serviceable	TXV spare parts
Superheat setting	Adjustable
Temperature range [°C] [Max]	-55 °C
Temperature range [°C] [Min]	-90 °C
Temperature range [°F] [Max]	-65 °F
Temperature range [°F] [Min]	-130 °F
Type	TE 5
Type designation	Element
