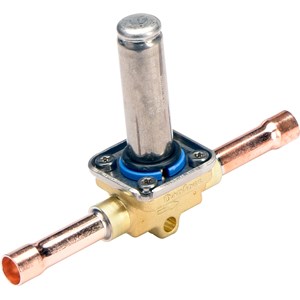

VAN ĐIỆN TỪ DANFOSS EVR 2, SOLDER, ODF, 1/4 IN - C/N 032F1201

Gross weight

0.21 kg

Net weight

0.17 kg

EAN

5702422040842

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - 80 °C

Ambient temperature range [°F] [Max]

175 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

EAC
LLC CDC TYSK

Category

Art. 4, par. 3

Coil

No

Cv value [gal/min]

0.18 gal/min

Direction

Straightway

Fluid Group

1;2

Function

NC

Identical product

032F2302

Inlet connection type

SOLDER, ODF

Inlet size [in]

1/4 in

Kv value [m³/h]

0.16 m³/h

Manual operation option

No

Max. Working Pressure [bar]

45.2 bar

Max. Working Pressure [psig]

655 psig

MaxOPD[bar] 10W AC

38 bar

MaxOPD[psi] 10W AC

550 psi

Medium temp. range note

Defrost max 130°C/265°F

Medium temperature range [°C] [Max]

105 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

221 °F

Medium temperature range [°F] [Min]

-40 °F

MinODP [bar]

0 bar

MOPD[bar/psi]

COIL DEPENDEND

MWP [bar] PED compliant

49 bar

Orifice size [mm]

2.3 mm

Outlet connection type

SOLDER, ODF

Outlet size [in]

1/4 in

Packing format

Multi pack

Parts Program name

EVR

PED category

Art. 4, par. 3

Product accessories

Solenoid valve accessories

Product family name

EVR

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

24 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf
R125
R134a
R152a
R22
R290
R32
R404A
R407A
R407C
R407F
R410A
R417A
R448A
R449A
R450A
R452A
R600
R600a
R513A
R452B
R454B
R1234ze(E)
R407H
R413A
R422A
R422B
R422D
R438A
R444B
R447A
R449B
R454C
R455A
R463A
R513B
R515A
R515B
R516A
R442A
R447B
R512A
R454A
R507A

Serviceable

Solenoid valve spare parts

Type

EVR 2

Type designation

Solenoid valve, Solder

Valve operation

DIRECT
