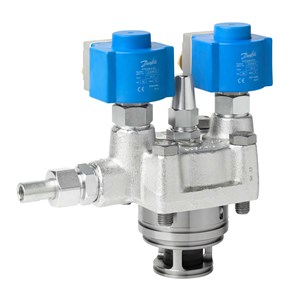

VAN ĐIỆN TỪ DANFOSS ICLX 40 - C/N 027H4204

Mã sản phẩm: 027H4204

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN ĐIỆN TỪ DANFOSS ICLX 40 - C/N 027H4204

Description: Function module, Product name: Function module, Used for product: ICV 40, Kv value [m³/h]: 29.000

Actuator system	2 EVM pilot sol valve module
Brand	ICV Flexline
Cv value [gal/min]	33.6 gal/min
Description	Function module
Ext pilot pressure connection	Weld nipple (P2 Port)
Kv value [m³/h]	29 m³/h
Manual operation option	Manual open spindle
Opening configuration	1-step (optional setting) 2-step (default)
Packing format	Single pack
Parts Program name	ICLX
Product accessories	ICM / ICS / ICLX accessories
Product description	Function Module
Product family name	ICLX
Product group	Press. and temp. regul. valves
Product name	Function module
Quantity per packing format	1 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1233zd(E) R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R170 R452C R600 R600a
Serviceable	ICM / ICS / ICLX spare parts
Step 1 opening degree (~) [%]	10 %
Step 2 initialization	Delta p < 1.25 bar (18 psig)
Type	ICLX 40
Used for product	ICV 40
Used for product comments	With top assembly
Valve operation	Solenoid operated
