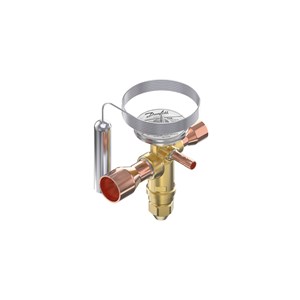

VAN TIẾT LƯU DANFOSS TGE, R22/R407C - C/N 067N2154

Gross weight

0.45 kg

Net weight

0.38 kg

EAN

5702428139274

Approval

C UL US LISTED
EAC
LLC CDC TYSK

Balanced port [Yes/No]

Yes

Body material

Brass

Bulb temperature max. [ºC]

100 °C

Bulb temperature max. [ºF]

210 °F

Capillary tube length [in]

59 in

Capillary tube length [mm]

1500 mm

Connection material

Copper

Direction

Straightway

Element temperature max. [°C]

110 °C

Element temperature max. [°F]

230 °F

Equalization connection type

SOLDER, ODF

Equalization size [in]

1/4 IN

Flow direction

Bi-flow

Flow direction indicator

Embossed 1-way arrow

Identical product

067N2174

Inlet connection type

SOLDER, ODF

Inlet size [in]

1/2 in

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

711 psig

Orifice capacities [kW]

20 kW

Orifice capacities [TR]

6 tons

Orifice size

6

Outlet connection type

SOLDER, ODF

Outlet size [in]

7/8 in

Packing format

Multi pack

Parts included

Bulb strap

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product description

Thermostatic Expans. Valve

Product family name

TGE

Product group

Expansion valves

Product name

Thermostatic expansion valve

Quantity per packing format

12 pc

Rated cap. cond. Range N [IMP]

tcond=100 °F
tevap=40 °F
tliq=98 °F

Rated cap. cond. Range N [SI]

tcond=38 °C
tevap=4.4 °C
tliq=37 °C

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R22/R407C

Serviceable

No

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [Max]

10 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

50 °F

Temperature range [°F] [Min]

-40 °F

Type

TGE

UL approved refrigerants

R22
R407C

Valve body temp. max. [°C]

100 °C

Valve body temp. max. [°F]

210 °F
