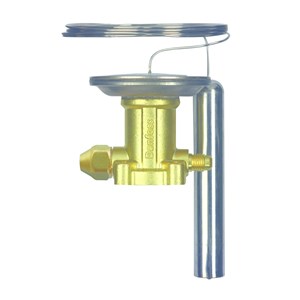

VAN TIẾT LƯU DANFOSS TE 20, R407C - C/N 067B3371

Gross weight

0.73 kg

Net weight

0.64 kg

EAN

5702428148122

Approval

EAC
LLC CDC TYSK

Body material

Brass

Capillary tube length [in]

197 in

Capillary tube length [mm]

5000 mm

Equalization connection type

FLARE

Equalization size [in]

1/4 IN

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

400 psig

Packing format

Multi pack

Parts Program name

TE 20

Pressure equalization

Externally equalized

Product description

Thermostatic Expans. Valve

Product family name

TE 5 - 55

Product group

Expansion valves

Product name

Element for expansion valve

Quantity per packing format

9 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R407C

Temperature range [°C] [Max]

10 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

50 °F

Temperature range [°F] [Min]

-40 °F

Type

TE 20

Type designation

Element
