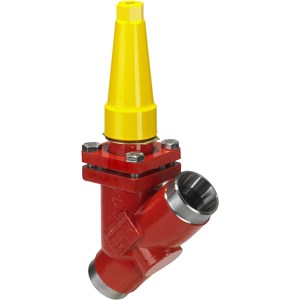

VAN TIẾT LƯU TAY DANFOSS REG-SA 32 - C/N 148B5512

Gross weight

4.72 kg

Net weight

3.95 kg

EAN

5702428474191

Approval

CE
CRN
EAC
LLC CDC TYSK
UKCA

Body material

Steel

Brand

SVL Flexline

Category

II

Colour Paint

Reddish brown

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Cv value [gal/min]

8.12 gal/min

Direction

Straightway

Equipment

Cap

Flow area [in2]

0.275 in²

Flow area [mm2]

178 mm²

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1;2

Inlet connection size [in]

1 1/4 in

Inlet connection size [mm]

32 mm

Inlet connection type

Butt weld

Kv value [m³/h]

7 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Neck

Standard

Outlet connection size [in]

1 1/4 in

Outlet connection size [mm]

32 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

REG-SA / REG-SB

PED category

II

Product accessories

SVL Flexline accessories

Product description

Hand Regulating Valve

Product family name

REG straight

Product group

Shut-off and regulating valves

Product name

Hand operated regulating valve

Quantity per packing format

1 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R290
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R600
R600a
R717
R744
R507A
R1233zd(E)
R1234yf
R1234ze(E)
R125
R152a
R227ea
R236fa
R245fa
R32
R407H
R413A
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R512A
R513A
R513B
R515A
R515B
R516A

Serviceable

SVL Flexline spare parts

Temperature range [°C] [Max]

150 °C

Temperature range [°C] [Min]

-60 °C

Temperature range [°F] [Max]

302 °F

Temperature range [°F] [Min]

-76 °F

Type

REG-SA 32

Valve version

Standard version
