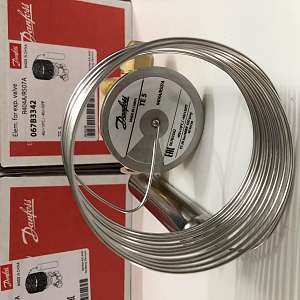

VAN TIẾT LƯU DANFOSS TE 5, R404A/R507A - C/N 067B3342

Gross weight

0.52 kg

Net weight

0.44 kg

EAN

5702428094030

Approval

EAC
LLC CDC TYSK

Body material

Brass

Capillary tube length [in]

118 in

Capillary tube length [mm]

3000 mm

Equalization connection type

FLARE

Equalization size [in]

1/4 IN

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

400 psig

Packing format

Multi pack

Parts Program name

TE 5

Pressure equalization

Externally equalized

Product description

Thermostatic Expans. Valve

Product family name

TE 5 - 55

Product group

Expansion valves

Product name

Element for expansion valve

Quantity per packing format

12 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R404A/R507A

Temperature range [°C] [Max]

10 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

50 °F

Temperature range [°F] [Min]

-40 °F

Type

TE 5

Type designation

Element
