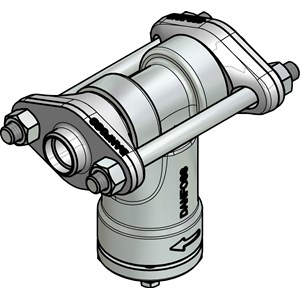

BỘ LỌC DANFOSS FA 20 - C/N 006-0066

Mã sản phẩm: 006-0066

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

BỘ LỌC DANFOSS FA 20 - C/N 006-0066

Connection material: Steel, Weave fineness [µm]: 150, Max. Working Pressure [bar]: 28.0

Category	Art. 3, par. 3
Connection material	Steel
Connection size [in]	3/4 in
Connection size [mm]	20 mm
Connection standard	EN 10220
Connection type	Butt weld
Cv value [gal/min]	8.58 gal/min
Fluid Group	1
Kv value [m³/h]	7.4 m³/h
Max. test pressure [bar]	42 bar
Max. test pressure [psig]	609 psig
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Packing format	Multi pack
Parts included	Bolts Gaskets Screws Flanges
PED category	Art. 3, par. 3
Product description	Strainer
Product family name	FA
Product group	Strainers
Product name	Strainer, non welded
Quantity per packing format	10 pc
Refrigerants	R22 R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1336mzz(Z) R134a R152a R227ea R23 R236fa R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R413A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R502 R503 R507A R513A R717
Staybolts size	M12 x 160
Strainer area [cm2]	60 cm²
Strainer area [in2]	9.3 in²
Strainer volume [cm3]	145 cm³
Strainer volume [in3]	8.85 in³
Temperature range [°C] [Max]	140 °C
Temperature range [°C] [Min]	-50 °C
Temperature range [°F] [Max]	284 °F
Temperature range [°F] [Min]	-58 °F
Type	FA 20
Used for product comments	Fitting in pipelines
Weave fineness [Mesh]	100 Mesh
Weave fineness [µm]	150 µm
