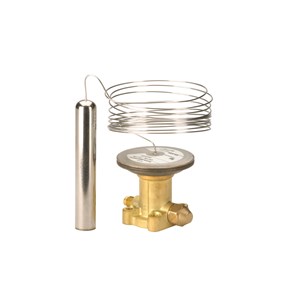

VAN TIẾT LƯU DANFOSS TE 55, R407C - C/N 067G3240

Gross weight

0.85 kg

Net weight

0.7 kg

EAN

5702428322317

Approval

EAC
LLC CDC TYSK

Body material

Brass

Capillary tube length [in]

197 in

Capillary tube length [mm]

5000 mm

Equalization connection type

FLARE

Equalization size [in]

1/4 IN

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

400 psig

Packing format

Multi pack

Parts included

Bulb strap
Gasket
O-ring

Parts Program name

TE 55

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product description

Thermostatic Expans. Valve

Product family name

TE 5 - 55

Product group

Expansion valves

Product name

Element for expansion valve

Quantity per packing format

9 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R407C

Serviceable

TXV spare parts

Superheat setting

Adjustable

Temperature range [°C] [Max]

10 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

50 °F

Temperature range [°F] [Min]

-40 °F

Type

TE 55

Type designation

Element
