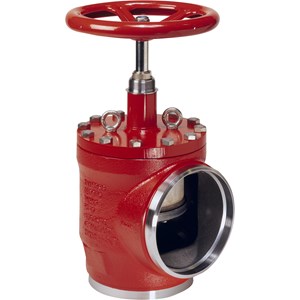

VAN CHẶN GÓC DANFOSS SVA-DL 250 - C/N 148B3763

Mã sản phẩm: 148B3763

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN CHẶN GÓC DANFOSS SVA-DL 250 - C/N 148B3763

Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Handwheel

Approval	CE LLC CDC EURO-TYSK UKCA
Category	III
Colour Paint	Reddish brown
Connection standard	ASME B 36.10M SCHEDULE 40
Cv value [gal/min]	1867.6 gal/min
Direction	Angleway
Equipment	Handwheel
Fluid Group	1;2
Inlet connection size [in]	10 in
Inlet connection size [mm]	250 mm
Inlet connection type	Butt weld
Kv value [m³/h]	1610 m³/h
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Outlet connection size [in]	10 in
Outlet connection size [mm]	250 mm
Outlet connection type	Butt weld
Packing format	Single pack
PED category	III
Product description	Stop Valve
Product family name	SVA angle
Product group	Shut-off and regulating valves
Product name	Shut-off valve
Quantity per packing format	1 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A R1150 R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A
Temperature range [°C] [Max]	150 °C
Temperature range [°C] [Min]	-60 °C
Temperature range [°F] [Max]	302 °F
Temperature range [°F] [Min]	-76 °F
Type	SVA-DL 250
Valve version	Delta Pressure Low
