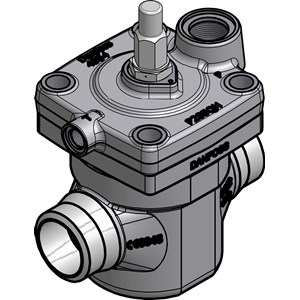

VAN ĐIỀU ÁP DANFOSS ICS 40 - C/N 027H4021
Product name: Pilot operated servo valve, Cv value [gal/min]: 31.000, Kv value [m³/h]: 27.000
|
Gross weight |
7.2 kg |
|
Net weight |
6.32 kg |
|
EAN |
5702428235822 |
|
Approval |
EAC |
|
Body material |
Steel |
|
Brand |
ICV Flexline |
|
Category |
II |
|
Connection material |
Steel |
|
Connection standard |
ASME B 36.10M SCHEDULE 80 |
|
Cv value [gal/min] |
31 gal/min |
|
Direction |
Straightway |
|
Equipment |
|
|
Ext pilot pressure connection |
Weld nipple (P2 Port) |
|
Flow direction indicator |
Embossed 1-way arrow |
|
Fluid Group |
1 |
|
Further information |
Coils not included |
|
Inlet connection size [in] |
1 1/2 in |
|
Inlet connection size [mm] |
40 mm |
|
Inlet connection type |
Butt weld |
|
Kv value [m³/h] |
27 m³/h |
|
Manual operation option |
Manual open spindle |
|
Max. Working Pressure [bar] |
65 bar |
|
Max. Working Pressure [psig] |
943 psig |
|
Opening configuration |
Closed (delta p=0 bar) |
|
Outlet connection size [in] |
1 1/2 in |
|
Outlet connection size [mm] |
40 mm |
|
Outlet connection type |
Butt weld |
|
Packing format |
Single pack |
|
Parts Program name |
ICS |
|
PED category |
II |
|
Pressure gauge connection |
Int. thread with blind plug |
|
Product accessories |
ICM / ICS / ICLX accessories |
|
Product description |
Servo operated valve |
|
Product family name |
ICS |
|
Product group |
Press. and temp. regul. valves |
|
Product name |
Pilot operated servo valve |
|
Quantity per packing format |
1 pc |
|
Refrigerants |
R134a |
|
Serviceable |
ICM / ICS / ICLX spare parts |
|
Surface coating |
Zn (TLP) |
|
Temperature range [°C] [Max] |
120 °C |
|
Temperature range [°C] [Min] |
-60 °C |
|
Temperature range [°F] [Max] |
248 °F |
|
Temperature range [°F] [Min] |
-76 °F |
|
Top cover |
1 function module |
|
Type |
ICS 40 |
|
UL approval file name |
REFRIGERANT VALVE 53R0 |
|
Valve operation |
Pilot operated |
|
Valve version |
Standard version |
