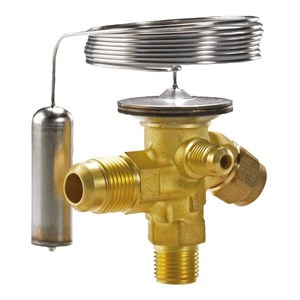

VAN TIẾT LƯU DANFOSS TE 2, R404A/R507A - C/N 068Z3411

Mã sản phẩm: 068Z3411

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN TIẾT LƯU DANFOSS TE 2, R404A/R507A - C/N 068Z3411

Temperature range [°C]: -60 - -25, MOP Point [°C]: -20, Pressure equalization: Externally equalized

Approval	EAC LLC CDC TYSK
Body material	Brass
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
Category	Art. 4, par. 3
Connection material	Brass
Direction	Angleway
Equalization connection type	FLARE
Equalization size [in]	1/4 IN
Flow direction	Single-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Identical product	068Z3452
Inlet connection type	FLARE
Inlet size [in]	3/8 in
Max. Working Pressure [bar]	34 bar
Max. Working Pressure [psig]	500 psig
MOP Point [psig]	MOP 30
MOP Point [°C]	-20 °C
MOP Point [°F]	-5 °F
Outlet connection type	FLARE
Outlet size [in]	1/2 in
Packing format	Multi pack
Parts included	Bulb strap
Parts Program name	T2/TE2
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Product family name	T2
Product group	Expansion valves
Product name	Thermostatic expansion valve
Quantity per packing format	20 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R404A/R507A
Serviceable	TXV spare parts
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [Max]	-25 °C
Temperature range [°C] [Min]	-60 °C
Temperature range [°F] [Max]	-15 °F
Temperature range [°F] [Min]	-75 °F
Type	TE 2
