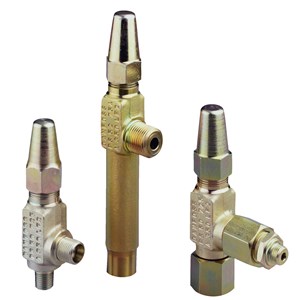

VAN ĐO DANFOSS SNV-ST - C/N 148B3769

Mã sản phẩm: 148B3769

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN ĐO DANFOSS SNV-ST - C/N 148B3769

Inlet connection type: Butt weld, Outlet connection type: G

Approval	EAC LLC CDC TYSK TÜV
Body material	Steel
Category	Art. 4, par. 3
Colour Paint	Cr3 / TLP
Connection material	Steel
Connection standard	EN 10220 ISO 228-1
Direction	Angleway
Equipment	Cap
Flow direction	Bi-flow
Fluid Group	1
Identical product	148B4211
Inlet connection size [in]	1/2 in
Inlet connection type	Butt weld
Inlet length [in]	4 in
Inlet length [mm]	100 mm
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Outlet connection size [in]	1/2 A
Outlet connection type	G
Outlet Internal/External	External
Packing format	Multi pack
PED category	Art. 4, par. 3
Product accessories	SNV accessories
Product description	Stop Needle Valve
Product group	Shut-off and regulating valves
Product name	Gauge valve
Quantity per packing format	6 pc
Refrigerants	R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A R1150 R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A
Serviceable	SNV spare parts
Temperature range [°C] [Max]	150 °C
Temperature range [°C] [Min]	-60 °C
Temperature range [°F] [Max]	302 °F
Temperature range [°F] [Min]	-76 °F
Type	SNV-ST
Valve version	Extended branch
