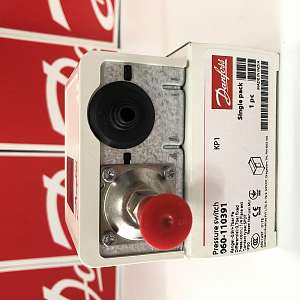

CÔNG TĂC ÁP SUẤT DANFOSS KP1 - C/N 060-110391

Mã sản phẩm: 060-110391
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CÔNG TĂC ÁP SUẤT DANFOSS KP1 - C/N 060-110391

Regulation range [bar] Pe: -0.90 - 7.00, Differential [bar]: 0.70, Contact function: SPDT, Reset function: Manual Min, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 17.0

Gross weight

0.33 kg

Net weight

0.29 kg

EAN

5702424497729



Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

65 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

149 °F

Ambient temperature range [°F] [Min]

-13 °F

Approval

BV
CCC
CE
DNV
GL
LLC CDC EURO-TYSK
LR
LVD
PED
PZH
RINA
RMRS
RoHS China
c UL us UL353, CS C22.2
c UL us UL873, CS C22.2
UKCA

Category

IV

Contact function

SPDT

Contact rating

AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V

Differential [bar]

0.7 bar

Differential [psi]

10 psi

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

Equipment

Fluid Group

1

Lubricants compatibility

Oilfree applications

Max. test pressure [bar] Pe

20 bar

Max. test pressure [psig]

290 psig

Max. Working Pressure [bar]

17 bar

Max. Working Pressure [psig]

245 psig

Oil free refrigerants

R134a
R513A
R515B

Packing format

Multi pack

PED category

IV

Pressure connection size

1/4

Pressure connection standard

DIN 8906

Pressure connection type

Flare

Pressure Male/Female

Male

Pressure range category

Low pressure

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product family name

KP Pressure switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

36 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerant oil compatibility

Oilfree applications
R134a
R513A
R515B

Refrigerants

R113
R1234yf
R1234yz
R1234ze
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R454C
R455A
R507A
R513A
R515B

Regulation range

27 inHg - 101 psig

Regulation range [bar] Pe [Max]

7 bar

Regulation range [bar] Pe [Min]

-0.9 bar

Reset function

Manual Min

Serviceable

No

Type

KP1

UL approval file name

E31024
MH27572

UL approved refrigerants

R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
