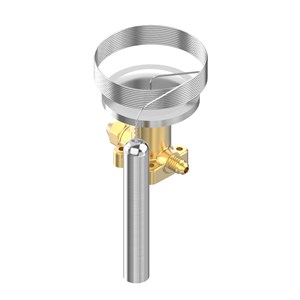

VAN TIẾT LƯU DANFOSS TE 12, R22/R407C - C/N 067B3211

Gross weight

0.71 kg

Net weight

0.56 kg

EAN

5702428149211

Approval

EAC
LLC CDC TYSK

Body material

Brass

Capillary tube length [in]

118 in

Capillary tube length [mm]

3000 mm

Equalization connection type

FLARE

Equalization size [in]

1/4 IN

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

400 psig

MOP Point [psig]

MOP 20

MOP Point [°C]

-20 °C

MOP Point [°F]

-5 °F

Packing format

Multi pack

Parts Program name

TE 12

Pressure equalization

Externally equalized

Product description

Thermostatic Expans. Valve

Product family name

TE 5 - 55

Product group

Expansion valves

Product name

Element for expansion valve

Quantity per packing format

9 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R22/R407C

Temperature range [°C] [Max]

-25 °C

Temperature range [°C] [Min]

-60 °C

Temperature range [°F] [Max]

-15 °F

Temperature range [°F] [Min]

-75 °F

Type

TE 12

Type designation

Element
