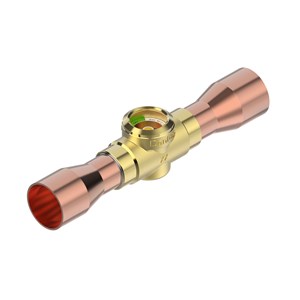

KÍNH XEM GAS DANFOSS SGP 22s N - C/N 014L0187

Approval

C UL US LISTED
EAC

Approval file name

REF. LIQUID INDICATOR 76H4

Body material

Brass

Connection material

Copper

EN13463-3 ignit. source assess

Yes

Further information

Oversize

Green: max moist con@25 °C

R1270: 16 ppm
R134a: 30 ppm
R22: 30 ppm
R32: 64 ppm
R404A: 20 ppm
R407A: 29 ppm
R407C: 30 ppm
R407F: 30 ppm
R410A: 66 ppm
R448A: 28 ppm
R449A: 29 ppm
R450A: 23 ppm
R452A: 20 ppm
R454B: 29 ppm
R513A: 22 ppm
R507A: 15 ppm

Green: max moist con@43 °C

R1270: 29 ppm
R134a: 45 ppm
R22: 50 ppm
R404A: 25 ppm
R407A: 48 ppm
R407C: 60 ppm
R407F: 60 ppm
R410A: 135 ppm
R448A: 70 ppm
R449A: 53 ppm
R450A: 46 ppm
R452A: 30 ppm
R454B: 58 ppm
R513A: 22 ppm
R507A: 30 ppm

Inlet connection type

SOLDER, ODF

Inlet size [in]

1 1/8 in

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Moisture indicator

N indicator

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515B

Outlet connection type

SOLDER, ODF

Outlet size [in]

1 1/8 in

Packing format

Multi pack

Product accessories

No

Product family name

SG

Product group

Sight glasses

Product name

Sight glass

Quantity per packing format

28 pc

REACH Candidate List substances >0.1%

Cobalt dichloride (CAS no. 7646-79-9)
Lead (CAS no. 7439-92-1)

Refrigerant oil compatibility

Oilfree applications
R1234ze(E)
R134a
R513A
R515B

Refrigerants

R1270
R134a
R22
R32
R404A
R407A
R407C
R407F
R410A
R448A
R449A
R450A
R452A
R452B
R454B
R513A
R744
R1233zd(E)
R1234ze(E)
R407H
R454C
R455A
R515B
R463A
R1234yf
R507A

Serviceable

No

Temperature range [°C] [Max]

80 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

175 °F

Temperature range [°F] [Min]

-58 °F

Type

SGP 22s N

UL approval file name

REF. LIQUID INDICATOR 76H4

UL approved refrigerants

R1233zd(E)
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R448A
R449A
R450A
R452A
R463A
R507A
R513A
R515B
R744

Yellow: min moist con@25 °C

R1270: 62 ppm
R134a: 100 ppm
R22: 120 ppm
R32: 289 ppm
R404A: 70 ppm
R407A: 115 ppm
R407C: 140 ppm
R410A: 266 ppm
R448A: 110 ppm
R449A: 105 ppm
R450A: 148 ppm
R452A: 79 ppm
R513A: 75 ppm
R407F: 168 ppm
R507A: 60 ppm

Yellow: min moist con@43 °C

R454B: 250 ppm
R134a: 170 ppm
R404A: 100 ppm
R407C: 225 ppm
R507A: 110 ppm
