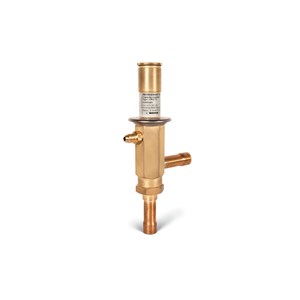

BỘ ĐIỀU CHỈNH KHÍ NÓNG DANFOSS CPCE 15 - C/N 034N0083

Approval

C UL US LISTED
EAC
LLC CDC TYSK
RoHS
RoHS China

Approval file name

REFRIGERANT VALVE 53R0

Differential pressure [bar]

18 bar

Differential pressure [psi]

260 psi

Factory setting [bar]

0.4 bar

Factory setting [psig]

5.8 psig

Flow direction indicator

Embossed 1-way arrow

Further information

Injection: LG liq. gas mixer

Inlet connection type

SOLDER, ODF

Inlet size [in]

5/8 in

Inlet size [mm]

16 mm

Max. test pressure [bar]

31 bar

Max. test pressure [psig]

450 psig

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

406 psig

Medium temperature range [°C] [Max]

140 °C

Medium temperature range [°C] [Min]

-50 °C

Medium temperature range [°F] [Max]

284 °F

Medium temperature range [°F] [Min]

-58 °F

Outlet connection type

SOLDER, ODF

Outlet size [in]

5/8 in

Outlet size [mm]

16 mm

Packing format

Multi pack

Pilot line conn. size [in]

7/16 in - 20 UNF

Pilot line connection type

Flare

Product accessories

KV valves accessories

Product description

Capacity regulator

Product family name

CPCE

Product group

Press. and temp. regul. valves

Product name

Hot gas bypass regulator

Quantity per packing format

8 pc

Rated cap. conditions [IMP]

Delta ts=7 °F
tcond=86 °F
tevap=-14 °F

Rated cap. conditions [SI]

Delta ts=4K
tevap=-10 °C

Rated cap. R404A/R507A [kW]

24.2 kW

Rated cap. R404A/R507A [TR]

9.1 tons

Rated capacity R134a [kW]

11.6 kW

Rated capacity R134a [TR]

6.3 tons

Rated capacity R22 [kW]

25.6 kW

Rated capacity R22 [TR]

9.2 tons

Rated capacity R407C [kW]

27.9 kW

Rated capacity R407C [TR]

9.9 tons

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)
Diisopentyl phthalate (CAS no. 605-50-5)

Refrigerants

R1270
R134a
R22
R290
R404A
R407A
R407C
R407F
R448A
R449A
R450A
R452A
R507A
R513A
R600
R600a
R407H
R449B
R454C
R455A
R515B
R516A
R454A
R1234ze(E)

Regulation range [bar] [Max]

6 bar

Regulation range [bar] [Min]

0 bar

Regulation range [psi] [Max]

85 psi

Regulation range [psi] [Min]

0 psi

Regulation range [psig] Pe [Max]

85 psig

Regulation range [psig] Pe [Min]

0 psig

Serviceable

KV valves spare parts

Type

CPCE 15

UL approved refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R407H
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R516A
