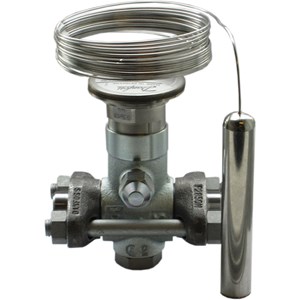

VAN TIẾT LƯU DANFOSS TEA 20-5, R717 - C/N 068G6138

Mã sản phẩm: 068G6138

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN TIẾT LƯU DANFOSS TEA 20-5, R717 - C/N 068G6138

Product details

Gross weight	2.44 kg
Net weight	2.29 kg

EAN	5702422139591

Approval	EAC
Body material	Cast iron GGG40.3
Bulb temperature max. [ºC]	100 °C
Bulb temperature max. [ºF]	212 °F
Capillary tube length [in]	192 in
Capillary tube length [mm]	5000 mm
Category	Art. 3, par. 3
Comments	GASKET IS NON ASBESTOS
Connection size [in]	1/2 in
Connection type	Weld flange
Direction	Straightway
Equalization connection type	M
Equalization connector	Weld nipple 6.5 mm
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Further information	Gasket is non asbestos
Max. test pressure [bar]	28.5 bar
Max. test pressure [psig]	413 psig
Max. Working Pressure [bar]	19 bar
Max. Working Pressure [psig]	276 psig
Packing format	Single pack
Parts included	Weld nipple

PED category	Art. 3, par. 3
Pressure equalization	Externally equalized
Product accessories	Flanges
Product description	Thermostatic Expans. Valve
Product family name	TEA
Product group	Expansion valves
Product name	Thermostatic expansion valve
Quantity per packing format	1 pc
Rated cap. conditions [IMP]	Subcooling=7,2 °F tcond=89,6 °F tevap=59 °F
Rated cap. conditions [SI]	Subcooling=4K tcond=32 °C tevap=15 °C
Rated capacity R717 [kW]	17.5 kW
Rated capacity R717 [TR]	5 tons
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R717
Serviceable	TXV spare parts
Superheat setting	Adjustable
Temperature range [°C] [Max]	30 °C
Temperature range [°C] [Min]	-20 °C
Temperature range [°F] [Max]	86 °F
Temperature range [°F] [Min]	-4 °F
Type	TEA 20-5
