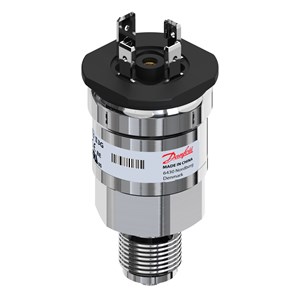

CẢM BIẾN ÁP SUẤT DANFOSS AKS2050 -1-159 BAR C/N 060G5752

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, max. +/- FS [%]

1 %

Accuracy, typical +/- FS [%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ATEX
C UR
CSA

Approval comments

ATEX Ex nA IIA T3 Gc

Approval standard

E227388
E31024

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male

Electrical connection

DIN-plug

Electrical connection size

4 pin

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

Intrinsically safe

No

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL ±FS [%]

0.2 %

Overload pressure max. [bar]

954 bar

Packing format

Multi pack

Pressure connection size

3/8

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [Max]

159 bar

Pressure range [bar] [Min]

-1 bar

Pressure range [psi] [Max]

2306.1 psi

Pressure range [psi] [Min]

-14.5 psi

Pressure unit reference

Gauge (relative)

Product family name

AKS

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

20 pc

Ratiometric of Vsupply [%] [Max]

90 %

Ratiometric of Vsupply [%] [Min]

10 %

Response time max. [ms]

4 ms

Specification key

AKS 2050-9736-A0AB06-0

Supply voltage [V] DC [Max]

8 V

Supply voltage [V] DC [Min]

4.75 V

Type

AKS 2050
