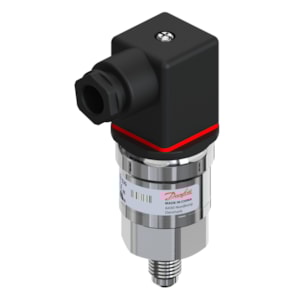

CẢM BIẾN ÁP SUẤT DANFOSS AKS3000 -1-20 BAR C/N 060G1010

+ supply

Pin 1

- common

Pin 2

Accuracy, max. +/- FS [%]

2 %

Accuracy, typical +/- FS [%]

1 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ATEX
C UR
CSA
GOST POCC

Approval comments

ATEX Ex nA IIA T3 Gc

Approval standard

6967179
E227388
E31024

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male and Female

Electrical connection

DIN-plug

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

High Clipping Level

22.4

Intrinsically safe

No

Low Clipping Level

3.6

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL ±FS [%]

0.5 %

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

33 bar

Packing format

Multi pack

Pressure connection notes

Flare 1/4 in

Pressure connection size

7/16-20

Pressure connection standard

ASME B1.1

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [Max]

20 bar

Pressure range [bar] [Min]

-1 bar

Pressure range [psi] [Max]

290.08 psi

Pressure range [psi] [Min]

-14.5 psi

Pressure unit reference

Gauge (relative)

Product family name

AKS

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

14 pc

Response time max. [ms]

4 ms

Specification key

AKS 3000-9231-A1BC08-0

Supply voltage [V] DC [Max]

30 V

Supply voltage [V] DC [Min]

10 V

Type

AKS 3000
