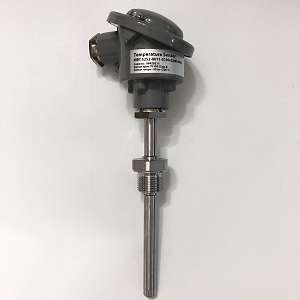

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5252 -50°C-200°C C/N 084Z8211
Process Connections: G1/2 , ISO 228-1-A, -50 °C - 200 °C, Insertion length [mm]: 100, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B, Electrical connection size: Pg 16
Gross weight |
0.4 kg |
Net weight |
0.39 kg |
EAN |
5702423114184 |
Ambient temperature max. [°C] |
90 °C |
Ambient temperature max. [°F] |
194 °F |
Connection material |
Stainless steel |
Connection standard |
ISO 228 |
Connection type |
G |
Electrical connection |
Type B |
Electrical connection size |
Pg 16 |
Enclosure rating IP |
IP65 |
Extension length [in] |
1.97 in |
Extension length [mm] |
50 mm |
Insertion length [in] |
3.94 in |
Insertion length [mm] |
100 mm |
Insertion type |
Fixed |
Number of terminals [pcs] |
3 pc |
Output signal |
Ohm |
Packing format |
Multi pack |
Process connection Male/Female |
Male |
Process connection material |
Stainless steel |
Process Connections |
G1/2 , ISO 228-1-A |
Product group |
Sensors |
Product name |
Temperature sensor |
Protection tube diameter [in] |
0.4 in |
Protection tube diameter [mm] |
10 mm |
Protection tube material |
AISI 316 Ti |
Quantity per packing format |
10 pc |
Sensor elem. resistance [Ohm] |
100 Ohm |
Sensor element [pc] |
1 pc |
Sensor element standard |
EN 60751 |
Sensor element tolerance |
Class B |
Sensor element type |
Pt |
Sensor Insert |
Exchangeable |
Temperature range [°C] [Max] |
200 °C |
Temperature range [°C] [Min] |
-50 °C |
Temperature range [°F] [Max] |
392 °F |
Temperature range [°F] [Min] |
-58 °F |
Type |
MBT 5252 |
Type designation |
MBT 5252-0011-0100-0200-0000 |
Wires [pcs] |
2 pc |
