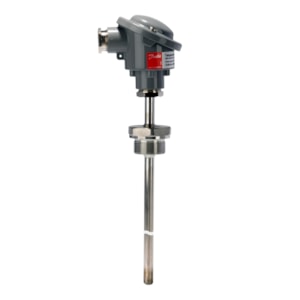

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5252 -50°C-200°C C/N 084Z6143

Gross weight

0.45 kg

Net weight

0.45 kg

EAN

5702423141876

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

G

Electrical connection

Type B

Electrical connection size

Pg 16

Enclosure rating IP

IP65

Extension length [in]

1.97 in

Extension length [mm]

50 mm

Insertion length [in]

9.84 in

Insertion length [mm]

250 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process Connections

G1/2 , ISO 228-1-A

Product group

Sensors

Product name

Temperature sensor

Protection tube diameter [in]

0.4 in

Protection tube diameter [mm]

10 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

8 pc

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Supply voltage [V] DC [Max]

35 V

Supply voltage [V] DC [Min]

8 V

Temperature range [°C] [Max]

200 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

392 °F

Temperature range [°F] [Min]

-58 °F

Transmitter setting range [°C] [Max]

100 °C

Transmitter setting range [°C] [Min]

0 °C

Transmitter setting range [°F] [Max]

212 °F

Transmitter setting range [°F] [Min]

32 °F

Transmitter type

Standard

Type

MBT 5252

Type designation

MBT 5252-0011-0250-0200-G110

Wires [pcs]

2 pc
