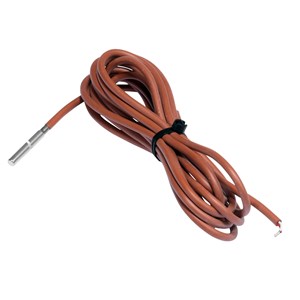

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 153 -50°C-200°C C/N 084Z6039

Gross weight

0.12 kg

Net weight

0.1 kg

EAN

5702423151431

Cable length [in]

137.8 in

Cable length [m]

3.5 m

Cable tempr. range [°C] [Max]

200 °C

Cable tempr. range [°C] [Min]

-60 °C

Cable tempr. range [°F] [Max]

392 °F

Cable tempr. range [°F] [Min]

-76 °F

Cable type

Silicone

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP68

Insertion type

Variable

Output signal

Ohm

Packing format

Multi pack

Product group

Sensors

Product name

Temperature sensor

Protection tube diameter [in]

0.24 in

Protection tube diameter [mm]

6 mm

Protection tube material

AISI 305

Quantity per packing format

30 pc

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Temperature range [°C] [Max]

200 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

392 °F

Temperature range [°F] [Min]

-58 °F

Type

MBT 153

Type designation

MBT 153-2200-0350

Wires [pcs]

2 pc
