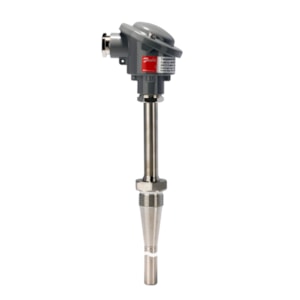

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5116 -50°C-600°C - C/N 084Z5026

Gross weight

1.01 kg

Net weight

1 kg

EAN

5702423139248

Ambient temperature max. [°C]

90 °C

Ambient temperature max. [°F]

194 °F

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

Electrical connection

Type B

Electrical connection size

Pg 16

Enclosure rating IP

IP65

Extension length [in]

1.97 in

Extension length [mm]

50 mm

Insertion length [in]

11.81 in

Insertion length [mm]

300 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process Connections

G3/4 , ISO 228-1-A

Product Group

MULTI BLOCK

Product group

Sensors

Product name

Temperature sensor

Protection tube diameter [in] [Max]

0.95 in

Protection tube diameter [in] [Min]

0.55 in

Protection tube diameter [mm] [Max]

24 mm

Protection tube diameter [mm] [Min]

14 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

10 pc

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [Max]

600 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

1112 °F

Temperature range [°F] [Min]

-58 °F

Type

MBT 5116

Type designation

MBT 5116-B001-300-10-0000

Wires [pcs]

2 pc
