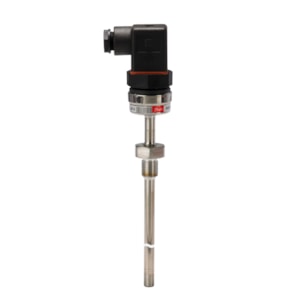

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3560 -50°C-200°C C/N 084Z4036
Process Connections: G1/4 , ISO 228-1-A, -50 °C - 200 °C, Insertion length [mm]: 100, Output signal [mA]: 4 - 20, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Protection tube material: AISI 316 Ti, Electrical connection: DIN-plug, Electrical connection size: Pg 9
Gross weight |
0.18 kg |
Net weight |
0.13 kg |
EAN |
5702423197316 |
Ambient temperature max. [°C] |
85 °C |
Ambient temperature max. [°F] |
185 °F |
Connection material |
Stainless steel |
Connection standard |
ISO 228 |
Connection type |
G |
Electrical conn. Male/Female |
Male and Female |
Electrical connection |
DIN-plug |
Electrical connection size |
Pg 9 |
Electrical connection standard |
EN 175301-803-A |
Enclosure rating IP |
IP65 |
Extension length [in] |
1.3 in |
Extension length [mm] |
33 mm |
Insertion length [in] |
3.94 in |
Insertion length [mm] |
100 mm |
Insertion type |
Fixed |
Output signal [mA] [Max] |
20 mA |
Output signal [mA] [Min] |
4 mA |
Packing format |
Multi pack |
Process connection Male/Female |
Male |
Process connection material |
Stainless steel |
Process Connections |
G1/4 , ISO 228-1-A |
Product group |
Sensors |
Product name |
Temperature sensor |
Protection tube diameter [in] |
0.31 in |
Protection tube diameter [mm] |
8 mm |
Protection tube material |
AISI 316 Ti |
Quantity per packing format |
13 pc |
Sensor elem. resistance [Ohm] |
1000 Ohm |
Sensor element tolerance |
< ± 1% FS |
Sensor element type |
Pt |
Sensor Insert |
Fixed |
Supply voltage [V] DC [Max] |
32 V |
Supply voltage [V] DC [Min] |
10 V |
Temperature range [°C] [Max] |
200 °C |
Temperature range [°C] [Min] |
-50 °C |
Temperature range [°F] [Max] |
392 °F |
Temperature range [°F] [Min] |
-58 °F |
Transmitter setting range [°C] [Max] |
200 °C |
Transmitter setting range [°C] [Min] |
0 °C |
Transmitter setting range [°F] [Max] |
392 °F |
Transmitter setting range [°F] [Min] |
32 °F |
Transmitter type |
Integrated |
Type |
MBT 3560 |
