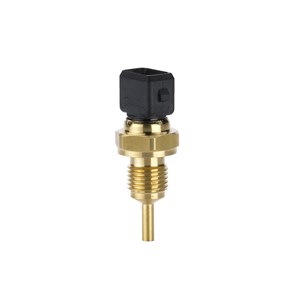

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270 -50°C-150°C C/N 084Z2014

Gross weight

0.02 kg

Net weight

0.02 kg

EAN

5702423286423

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

Connection material

AISI 316 Ti

Connection type

M

Electrical connection

AMP Junior Power Timer

Electrical connection size

2 pin

Enclosure rating IP

IP67

Insertion length [in]

0.94 in

Insertion length [mm]

24 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process Connections

M10x1 , ISO 965

Product Group

CETOP 3 BLOCK

Product group

Sensors

Product name

Temperature sensor

Protection tube diameter [in]

0.24 in

Protection tube diameter [mm]

6.1 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

40 pc

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [Max]

150 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

302 °F

Temperature range [°F] [Min]

-58 °F

Type

MBT 3270

Type designation

MBT 3270-00001-024-30300-000

Wires [pcs]

2 pc
