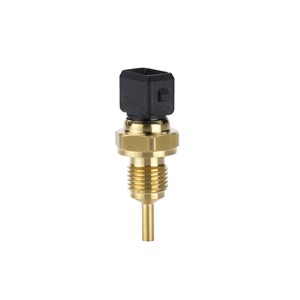

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270 -50°C-150°C C/N 084Z2012

Gross weight

0.03 kg

Net weight

0.26 kg

EAN

5702423286409

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

Connection material

Brass

Connection type

G

Electrical connection

AMP Junior Power Timer

Electrical connection size

2 pin

Enclosure rating IP

IP67

Insertion length [in]

1.1 in

Insertion length [mm]

28 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Brass

Process Connections

G1/4 , ISO 228-1-A

Product Group

2/2 DIRECTIONAL VALVE

Product group

Sensors

Product name

Temperature sensor

Protection tube diameter [in]

0.17 in

Protection tube diameter [mm]

4.2 mm

Protection tube material

Brass

Quantity per packing format

40 pc

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [Max]

150 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

302 °F

Temperature range [°F] [Min]

-58 °F

Type

MBT 3270

Type designation

MBT 3270-02000-028-00300-000

Wires [pcs]

2 pc
