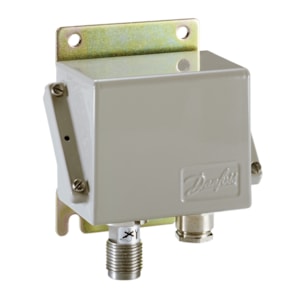

CẢM BIẾN ÁP SUẤT EMP2 DANFOSS 0-40 BAR C/N 084G2113
Product name: Pressure transmitter, Type: EMP 2, Pressure range [psi]: 0.00 - 580.15, Pressure range [bar]: 0.00 - 40.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 13.5, Electrical connection: Terminal block
Gross weight |
1.07 kg |
Net weight |
0.99 kg |
EAN |
5702423021031 |
+ supply |
P |
- common |
N |
Accuracy, max. +/- FS [%] |
0.5 % |
Accuracy, typical +/- FS [%] |
0.5 % |
Adj. zero point and span |
No |
Approval |
ABS |
Compensated temp. range [°C] [Max] |
70 °C |
Compensated temp. range [°C] [Min] |
0 °C |
Compensated temp. range [°F] [Max] |
158 °F |
Compensated temp. range [°F] [Min] |
32 °F |
Electrical connection |
Terminal block |
Electrical connection size |
Pg 13.5 |
Enclosure rating IP |
IP67 |
Flush diaphragm |
No |
Intrinsically safe |
No |
Medium temperature range [°C] [Max] |
70 °C |
Medium temperature range [°C] [Min] |
-10 °C |
Medium temperature range [°F] [Max] |
158 °F |
Medium temperature range [°F] [Min] |
14 °F |
Non-linearity BFSL ±FS [%] |
0.3 % |
Output signal |
Current |
Output signal [mA] [Max] |
20 mA |
Output signal [mA] [Min] |
4 mA |
Overload pressure max. [bar] |
80 bar |
Packing format |
Multi pack |
Pressure connection notes |
Combi connection G1/4 female |
Pressure connection size |
1/2 |
Pressure connection standard |
EN 228-1 |
Pressure connection type |
G |
Pressure Male/Female |
Male/Female |
Pressure range [bar] [Max] |
40 bar |
Pressure range [bar] [Min] |
0 bar |
Pressure range [kp/cm2] [Max] |
40.8 kp/cm2 |
Pressure range [kp/cm2] [Min] |
0 kp/cm2 |
Pressure range [psi] [Max] |
580.15 psi |
Pressure range [psi] [Min] |
0 psi |
Pressure unit reference |
Gauge (relative) |
Product group |
Sensors |
Product name |
Pressure transmitter |
Pulse-snubber |
No |
Quantity per packing format |
8 pc |
Response time max. [ms] |
4 ms |
Specification key |
EMP 2-2611-F6CD24-2 |
Supply voltage [V] DC [Max] |
32 V |
Supply voltage [V] DC [Min] |
11 V |
Type |
EMP 2 |
