CÔNG TẮC NHIỆT ĐỘ DANFOSS MBC 8100 20°C-60°C - C/N 061B800266

Mã sản phẩm: 061B800266

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

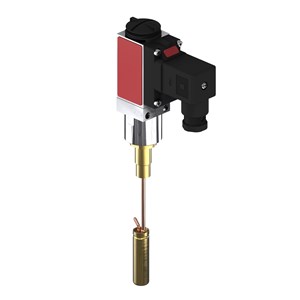

CÔNG TẮC NHIỆT ĐỘ DANFOSS MBC 8100 20°C-60°C - C/N 061B800266

Product name: Thermostat, Type: MBC 8100, Reset function: Auto, Contact function: SPDT

Gross weight	0.59 kg
Net weight	0.23 kg
EAN	5702423244652
Ambient temperature range [°C] [Max]	70 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	158 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	ABS BV CCC CCS CE DNV EAC GL KRS LR LVD NKK RINA RMRS RoHS RoHS China TYSK
Charge type	Adsorption
Connection for pocket or hose	M 18 x 1.5
Contact function	SPDT
Contact rating	AC15=0.5 A, 250 V DC13=12 W, 125 V
Differential (FS) [K]	3 K
Differential type	Fixed (max. value)
Electrical conn. Male/Female	Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Electrical spec. standard	EN 60947-5
Enclosure rating IP	IP65
Max. sensor temperature [°C]	130 °C
Max. sensor temperature [°F]	266 °F
Packing format	Multi pack
Product accessories	Switches accessories
Product description	Thermostat
Product group	Switches and thermostats
Product name	Thermostat
Quantity per packing format	6 pc
Reset function	Auto
Sensor pocket length min. [in]	3 in
Sensor pocket length min. [mm]	75 mm
Sensor size (Ø x L) [in]	1/2 x 2 in
Sensor size (Ø x L) [mm]	13 x 50 mm
Sensor type	Rigid Sensor
Serviceable	No
Specification key	1411-1A00075
Temperature range [°C] [Max]	60 °C
Temperature range [°C] [Min]	20 °C
Temperature range [°F] [Max]	140 °F
Temperature range [°F] [Min]	68 °F
Type	MBC 8100
