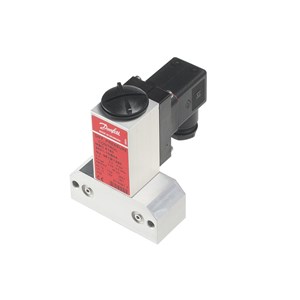

CÔNG TẮC CHÊNH ÁP DANFOSS MBC 5180 0.3-5.0 BAR - C/N 061B128066

Gross weight

0.39 kg

Net weight

0.27 kg

EAN

5702423218714

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-10 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

14 °F

Ammonia application

No

Approval

ABS
CCC
CCS
CE
EAC
GL
KRS
LR
LVD
NKK
RINA
RoHS
RoHS China
TYSK

Burst pressure [bar]

90 bar

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V
DC13=12 W, 125 V

Diff.press.setting range [bar] [Max]

5 bar

Diff.press.setting range [bar] [Min]

0.3 bar

Diff.press.setting range [MPa] [Max]

0.5 MPa

Diff.press.setting range [MPa] [Min]

0.03 MPa

Diff.press.setting range [psi] [Max]

72.5 psi

Diff.press.setting range [psi] [Min]

4.3 psi

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

Max. test pressure [bar] Pe

68 bar

Max. test pressure [psig]

986 psig

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

653 psig

Operat. range LP side [bar] Pe [Max]

30 bar

Operat. range LP side [bar] Pe [Min]

0 bar

Operat. range LP side [psig]Pe [Max]

435 psig

Operat. range LP side [psig]Pe [Min]

0 psig

Packing format

Multi pack

Pressure connection notes

With flange

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Product accessories

Generic accessories

Product description

Diff. Pressure Switch

Product group

Switches and thermostats

Product name

Differential pressure switch

Quantity per packing format

10 pc

Reset function

Auto

Serviceable

No

Specification key

2031-1DB04

Type

MBC 5180
