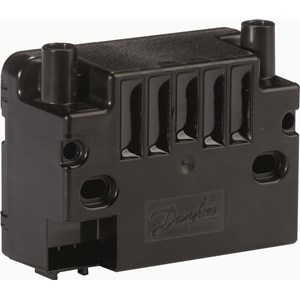

BỘ ĐÁNH LỬA DANFOSS COMPACT P4I 10/30 CM 15% 230V-TE105D C/N 052F4040

Gross weight

0.33 kg

Net weight

0.33 kg

Ambient temperature [°C] [Max]

60 °C

Ambient temperature [°C] [Min]

-10 °C

Description

EBI4 1P 230V (052F4040 AND 052F5039)

Grade of enclosure primary

IP40

Main fuse [A] [Min]

10 A

Packing format

Industrial pack

Power consumption [VA]

60 VA

Primary current [A]

0.25 A

Primary frequency [Hz]

50/60

Product group

Ignition Units

Quantity per packing format

40 pc

Secondary connection, short circuit current [mA]

40 mA

Secondary peak voltage [kV]

12

Storage temperature [°C] [Max]

85 °C

Storage temperature [°C] [Min]

-25 °C

Supply voltage range [V] AC

230 V

Supply voltage range [V] AC [Max]

255 V

Supply voltage range [V] AC [Min]

187 V

Type

EBI4 1P
